BROADWAY expanded metal
Broadway starts the series of “large” meshes that have made the history of expanded metal faces.

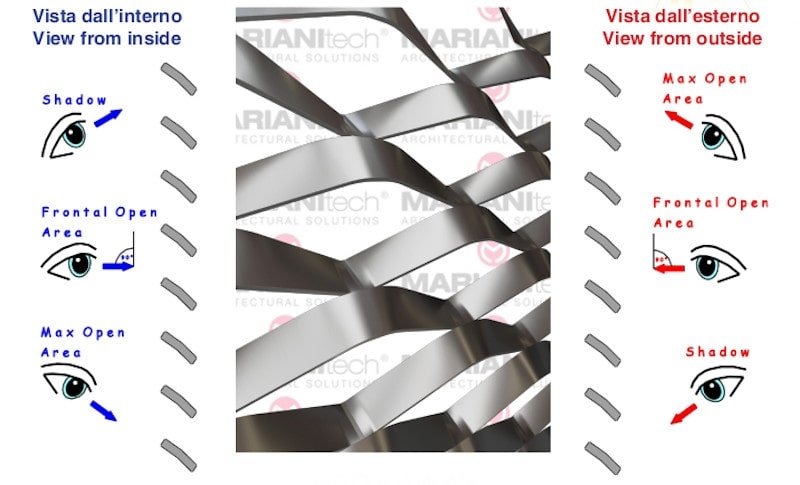

Broadway represents everything you can want from an expanded metal for large surfaces: large mesh, high level of transparency, elegance and lightness of its lines together with a great processing flexibility.
Mesh LWDxSWD | Strand | Thickness | Total Thickness | Dimension Hmax | Weight Alu. | Weight M.G.S. Steel | Open Area | Send inquiry |
---|---|---|---|---|---|---|---|---|
[mm] | [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | |
200 x 70 mm | 20,0 | 1,50 | 27,0 ÷ 29,0 | 2500 | 2,35 | 6,75 | 46 | |
200 x 70 mm | 20,0 | 2,00 | 27,0 ÷ 29,0 | 2500 | 3,10 | 9,00 | 46 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Broadway expanded metal Technical data sheet 0,34 MB (2 pages)
Expanded metal brochure 5,20 MB (68 pages)
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
