MANHATTAN expanded metal

manhattan

With its unique elegance, it gives buildings their personal look.

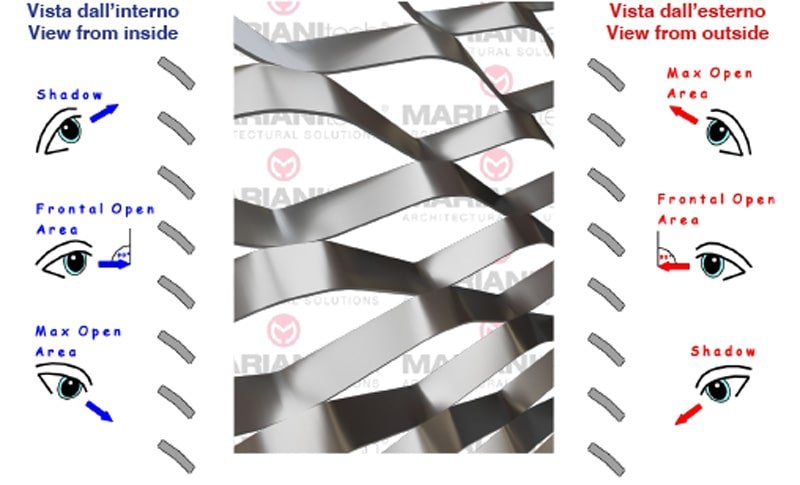

Its large, easy to work mesh defines the volumes without weighing them down, the overall effect is almost evanescent, while guaranteeing the correct balance between transparency and light.

Mesh LWDxSWD StrandThicknessTotal ThicknessDimension HmaxWeight Alu. Weight M.G.S. Steel Open AreaSend inquiry
[mm][mm][mm][mm][mm][Kg/m2][Kg/m2][%]
250 x 80 mm25,02,0040,0 ÷ 43,025003,569,8340
250 x 80 mm25,03,0040,0 ÷ 43,025005,3414,7540

weight-icon-alu Aluminium    weight-icon-steel Mild Steel, Galvanized Steel; Stainless Steel

Fixing & Mounting options

The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.

Select from among the different types of understructures for the mounting of expanded metal.
